S300 replacement turbo for the 2007.5-2018 6.7L Cummins
S300 replacement turbo for the 2007.5-2018 6.7L Cummins

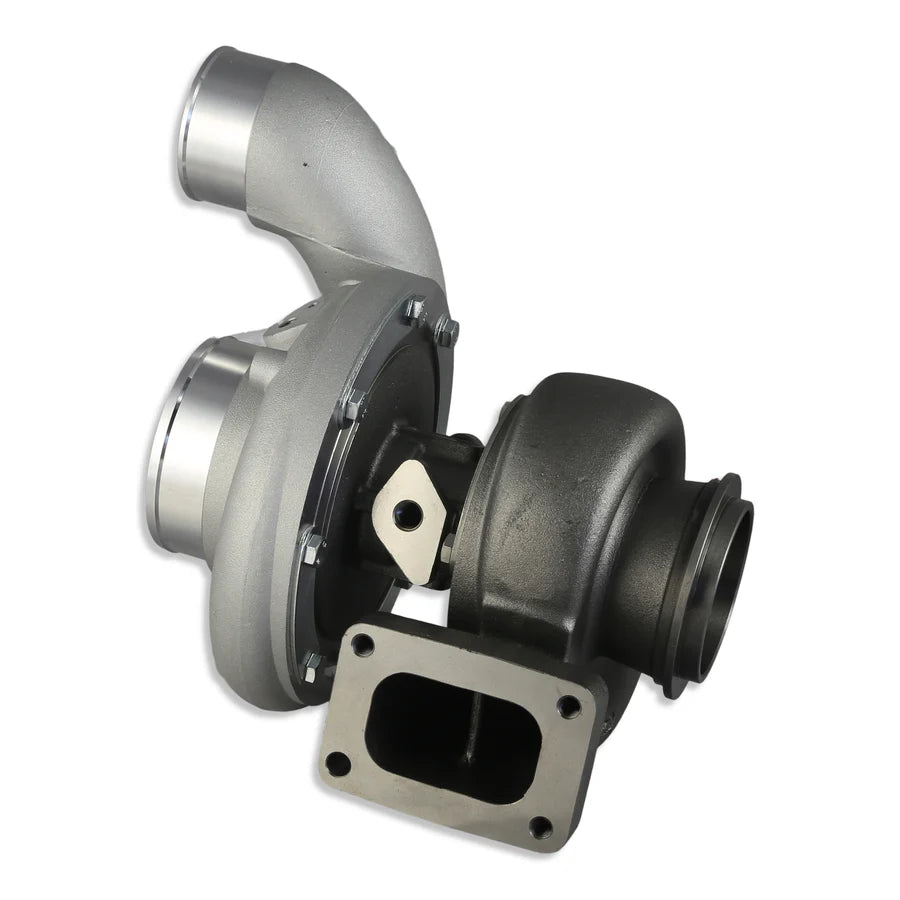

S300 Replacement Turbo For The 2007.5-2018 6.7L Cummins W/ Extreme 360 Bearing
If you were forced to replace a major component on your truck due to premature failure would you give the same exact part another chance, or would you want a more reliable solution? Now picture an aftermarket alternative that’s more reliable, more affordable and that also comes with a guaranteed performance gain. Welcome to our permanent fix for Holset VGT failure: a drop-in, stock replacement fixed geometry turbo for the ’07.5-’18 6.7L Cummins.
Direct Replacement, In Every Sense Of The Word

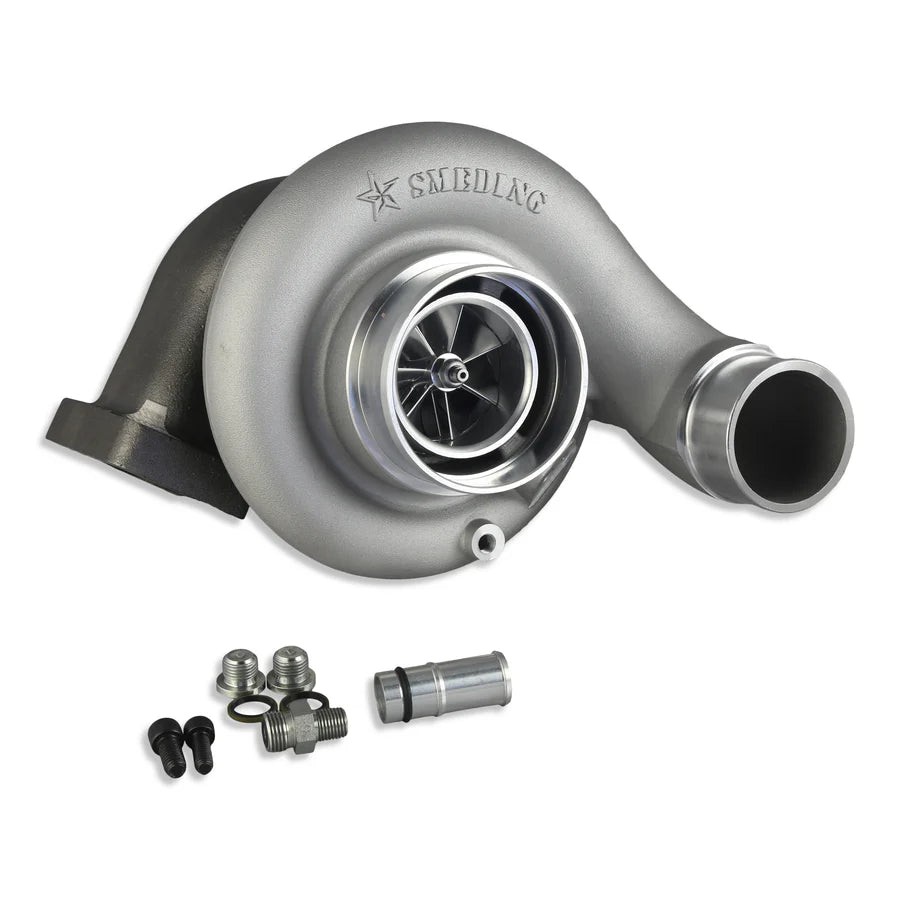

When we say direct drop-in replacement, we mean it. Our S300-based turbo will install in the exact same location the factory Holset did. There’s no modifying your air intake, installing a different hot-side intercooler pipe or buying a new downpipe to make it work. Not even the factory exhaust manifold has to be changed! Thanks to our turbo’s T4i inlet flange, it will bolt right up to your stock manifold. To simplify installation even further, we include an oil feed adapter, oil drain extension, and two coolant plugs with each turbo.
Engineered To Last
Established on the proven S300 platform, our turbo brings tried-and-true fixed geometry functionality to the table. No moving parts to seize up in the turbine side and no electronic actuator to fail. Unlike the 6.7L Cummins’ factory Holset VGT, the S300 is renowned for its ability to handle elevated shaft speeds and boost pressure while also reducing EGT and drive pressure. This makes it a mild performance upgrade in addition to being considerably more durable. For added insurance, we offer a 360-degree, heavy-duty steel thrust bearing upgrade for higher horsepower applications.
Multiple Options And 600hp Potential
Compressor wheel options vary from a cast 62mm to a billet 66mm, and the product line supports everything from the stock horsepower level up to 600 hp. For stock to mildly-tuned trucks, the standard S362 is good for up to 450 hp. The billet 63mm SXE version can support up to 500 hp and the billet 64.5mm SXE wheel is best suited for trucks in the 400 to 550 hp range. Our billet 66mm SXE turbo, as well as the cast 66mm option, can support between 450 to 600 hp. As with all of our stock replacement turbochargers, either compressor option makes for a solid choice for towing, daily driving, or even playing at the drag strip.
Highlights
- Direct, drop-in replacement (no exhaust manifold, downpipe, air intake, or intercooler pipe changes required)
- Simple, fixed geometry design (no actuator to fail or vanes to seize up)
- Proven S300 platform
- Less drive pressure makes life easier for both the turbo and the engine (namely the head gasket)
- Reduced EGT
- Higher boost potential
- Support for higher horsepower (up to 600 hp)
- Minimal sacrifice in low-rpm torque and spool up
- No more coolant supply (one less job for the cooling system to perform)
