Monster-Ram Intake System 2019-2024 6.7 Cummins
Monster-Ram Intake System 2019-2024 6.7 Cummins
The Banks Monster-Ram is the best-engineered intake elbow (horn) available for the 2019-2024 RAM Cummins 6.7L. Gain responsiveness and power efficiency. Improve Mass Air Flow by 88% over the stock intake. Prevents grid heater bolt failure.
50 State Compliant
CARB E.O. D-161-143 (2019-2021 Model Years)
49 State: CARB in process (2022-2024)Retains all emissions equipment for 50-State compliance.
Does Not Fit Chassis Cab
Click Here for Chassis Cab Version
- Raises boost without increasing turbine drive pressure

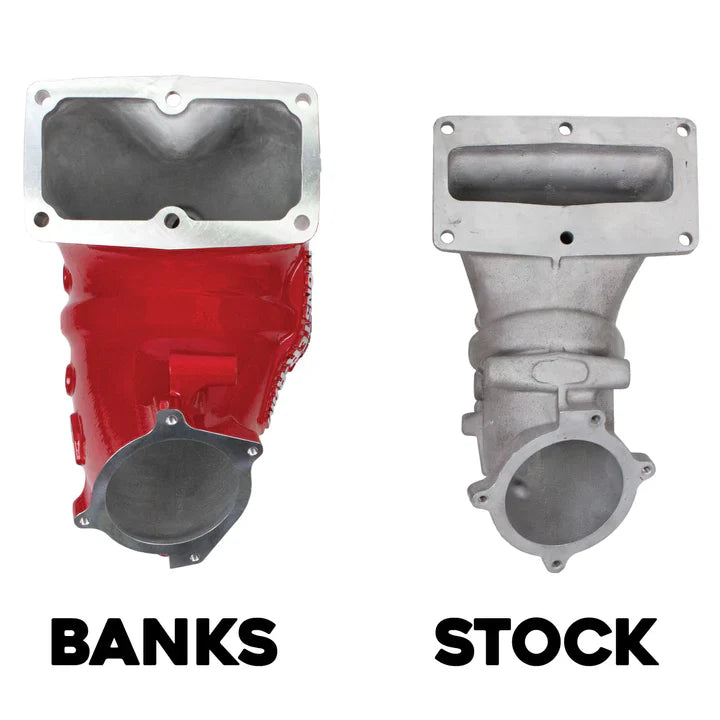

- Larger and less restrictive than stock intake
- Improves flow of oxygen-rich air into cylinders
- Quicker throttle response
- Optimizes air pressure and distribution
- Outflows stock over 88.3%
- 3-3/8 inch inlet
- Four 1/8 inch NPT ports
- Accommodates stock mounting points
- Includes proprietary fuel line and all necessary hardware

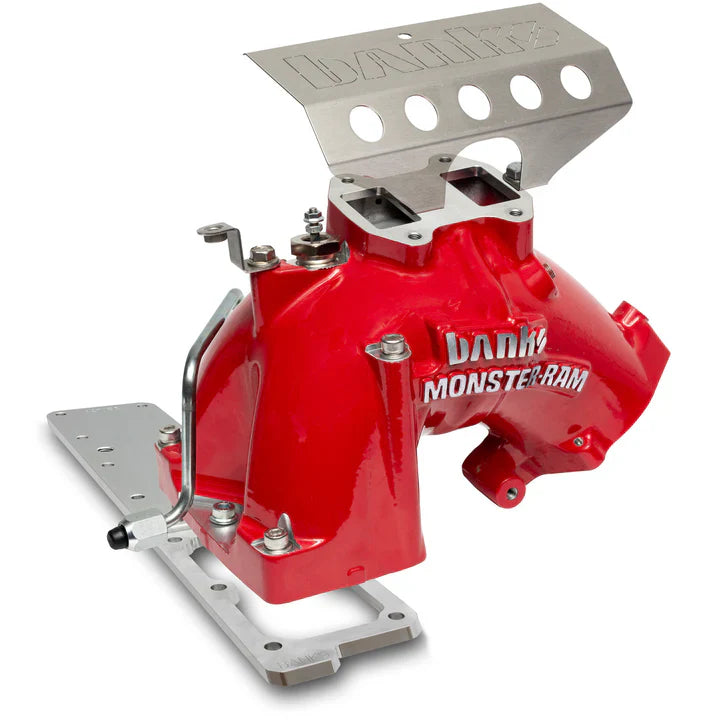

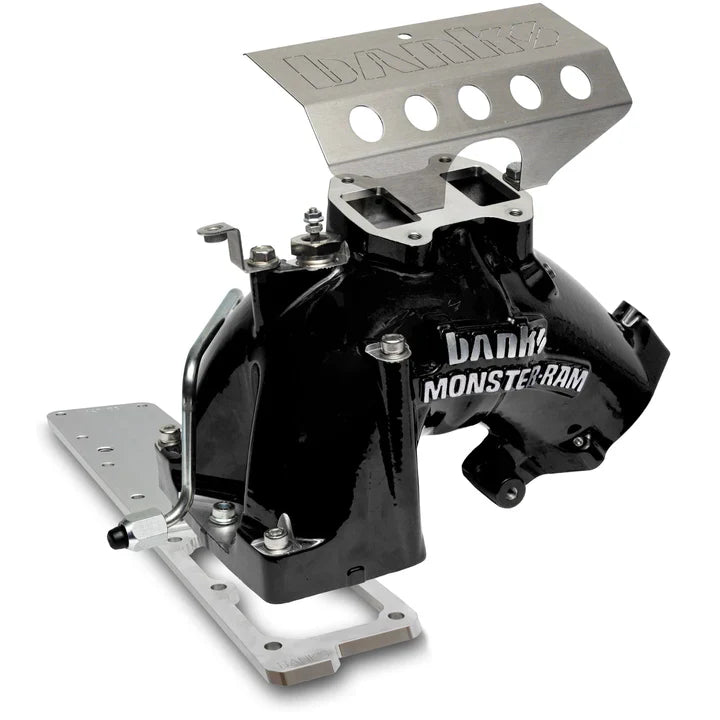

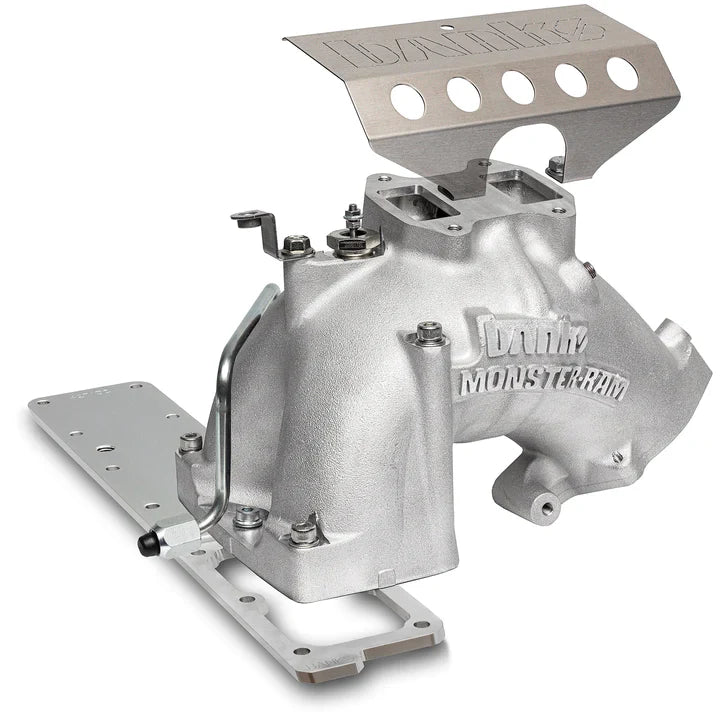

- Red powder-coated, Black or Raw finish
What it does
The Monster-Ram improves airflow from the intercooler. It flows 72.7 lbs/min MAF (Mass Air Flow) with Banks’ High-Flow Heater and Billet Intake Plate compared to stock's 38.6 lbs/min MAF.
Monster-Ram raises boost without increasing backpressure at the turbine. The result is a more responsive, power-efficient engine that offers even more headroom than stock for higher horsepower applications.

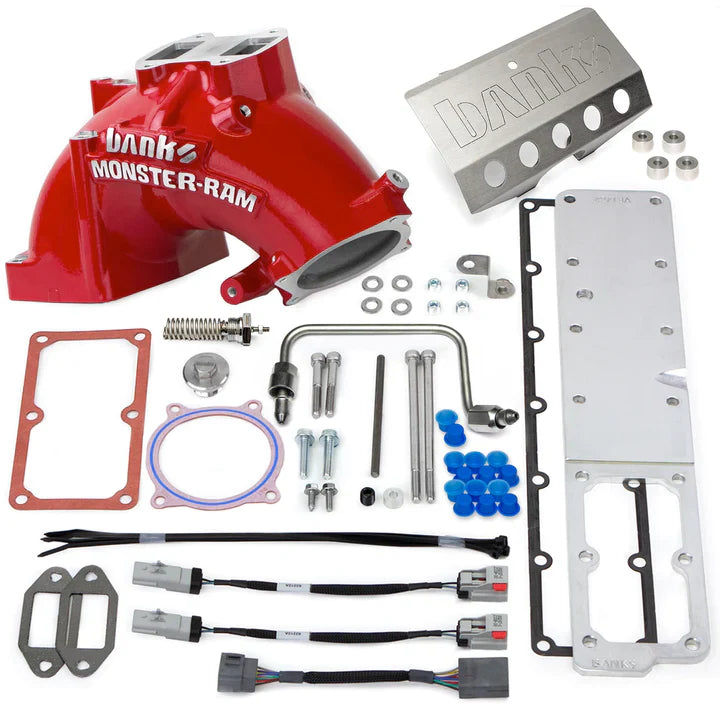

The complete system
Banks’ High-Flow Heater and Billet Intake Plate complete the perfect system. The High-Flow Heater allows for the removal of the restrictive stock heater grid plate. The new vertical coil-style heater provides the same functionality for cold starts as the stock grid heater but without obstructing airflow. Replacing the restrictive stock grid heater plate with the Banks High-Flow Intake Plate removes all obstructions and turbulence in the airflow path.
How it was designed
Utilizing the latest in CFD (computational fluid-dynamics), tested on the flow bench, the dyno, and on-road, Monster-Ram is a beast that only Banks could have unleashed. A direct-replacement aluminum casting, Monster-Ram is instant power, performance, and acceleration gratification. The factory inlet elbow is cramped and angular in order to accommodate the path of the stock No. 1 fuel line. Banks Engineers designed a new No. 1 fuel line, allowing the Monster-Ram to flow more air without obstruction.
Expandable
With four 1/8” NPT ports, perfect for temperature and pressure sensors, the sky's the limit for data acquisition.
Beats the competition
Like all Banks products, the Monster-Ram was tested against all available competitors. It more than doubles the improvement over the closest competitor.
